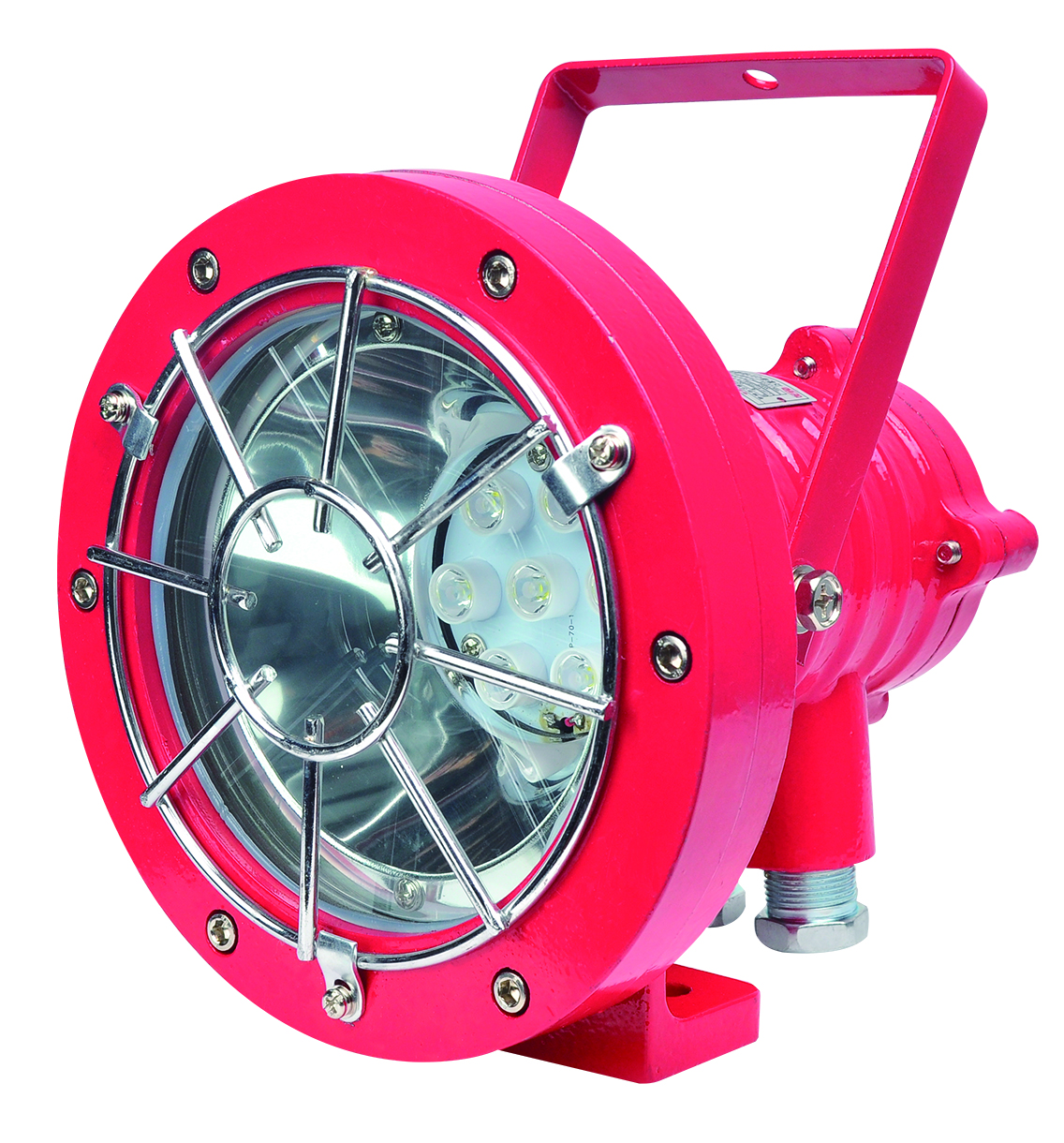

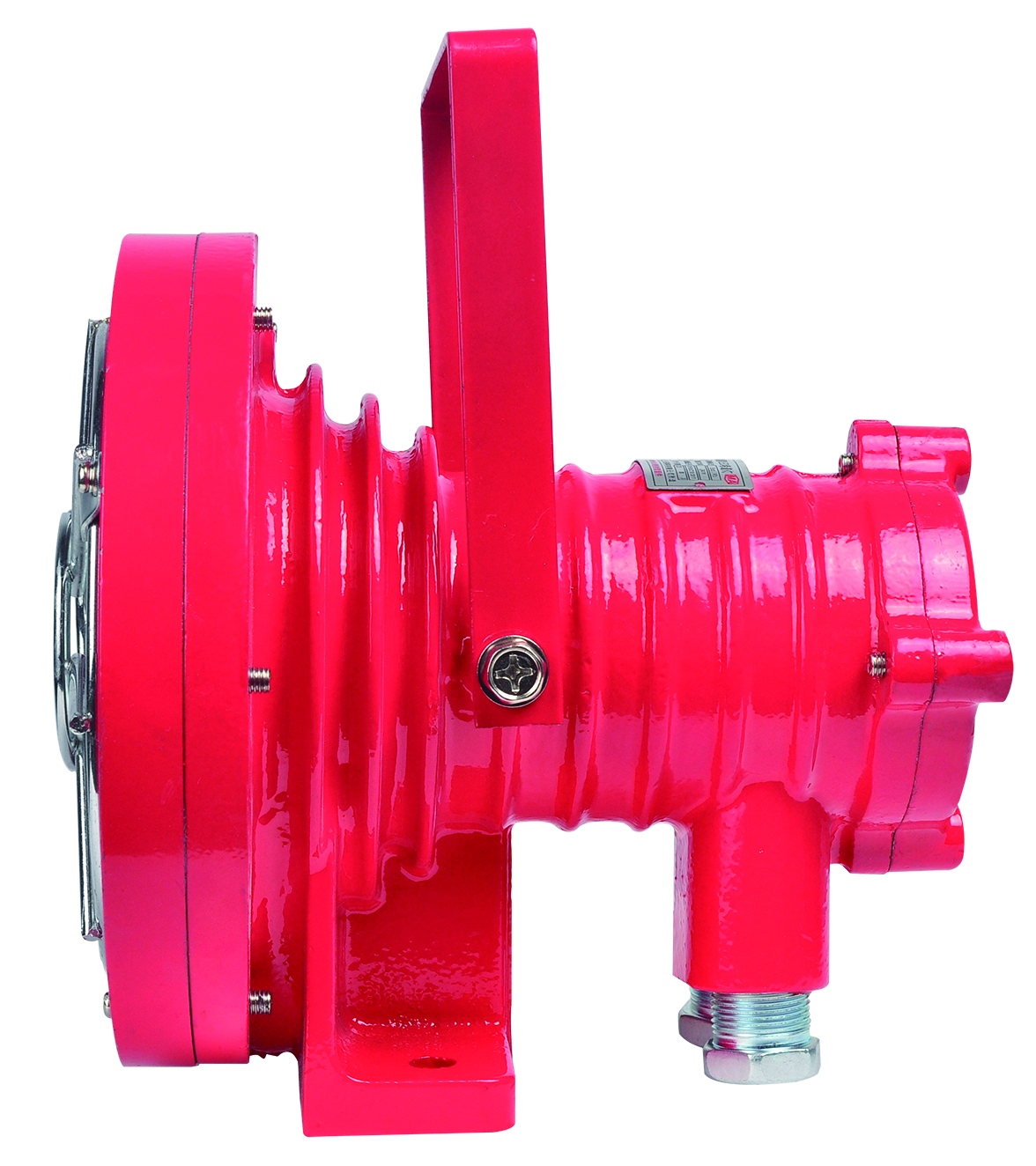

產品中心 礦用防爆燈 礦用隔爆型投光燈系列 DGS24/127L(A)礦用隔爆型LED投光燈
|
產品型號 |
DGS24/127LX(A) |
|
防爆標志 |
Ex db| Mb |
|
額定電壓 |
AC85-265V |
|
防護等級 |
IP66 |
|
反腐等級 |
WF2 |
|
進線口螺紋 |
M24X1.5 |
|
引入電纜 |
Φ10-14mm |
|
工作溫度 |
-20°c-40°c |
|

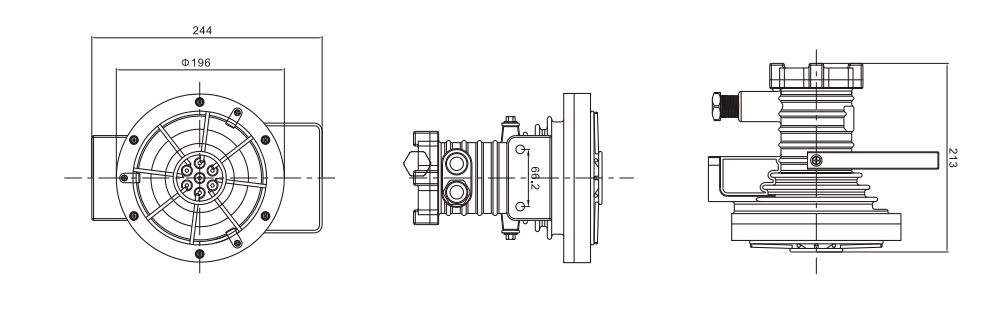

外形尺寸 |
244×213mm |
|
凈重 |
4.0kg |
|
數(shù)量 |
4pcs/箱 |
|
執(zhí)行標準 |
GB/T3836.1-2021 GB/T3836.2-2021 MT221-2005 |
|
|
|
|
|
|
|
|
|
|
產品型號 |
|
DGS20/127L(A) |
|
DGS24/127L(A) |
|
DGS36/127L(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光源 |
|
LED |
|
LED |
|
LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光通量 |
|
5500LM |
|
6600LM |
|
7200LM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
額定功率 |
|
20W |
|
24W |
|
36W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
色溫 |
|
6000-6500K |
|
6000-6500K |
|
6000-6500K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光照度 |
|
20LX |
|
25LX |
|
30LX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
